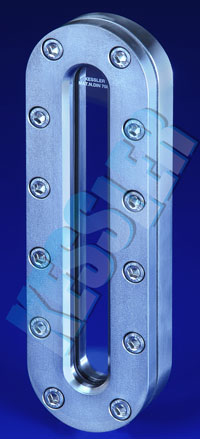

Rectangular Obround Sight Glass Fittings (level indicator)

Oval design: "D-Ended"

Rectangular Obround Sight Glass Fittings provide indication of flow, level and
chemical and physical reactions in the inside of vessels, tanks, reactors etc

View widths up to 50 mm

on demand with cylindrical pad shape and drainage chamfer

Technical specifications:

pressure rating: PN 2,5 / 6 / 10 / 25
sightglass: soda-lime-silicate glass DIN 8903 (up to 100°C) or borosilicate glass DIN 7081 (up to 243°C)
seals: silicone, EPDM or Reinz AFM 34 (FDA compliant) or PTFE (others on request)
bolts: cyl. bolts DIN 912 A2-70 or A4-70 - completely recessed

Material entire or partial stainless steel
base frame 1.4404 (316L) 1.4435 1.4462 1.4571 (316Ti) ST37 H2
top frame 1.4301 (304) 1.4404 (316L) ST37 H2


Sizes:

[mm] KL 633 KL 632 KL 631 KL 630
pressure rating PN 2,5 PN 6 PN 10 PN 25
view width 50 30 18 15
view height 200-725 140-580 108-513 121-321
mounting width 116 96 80 80
mounting height 266-791 206-646 170-575 186-386
standard glass thickness 10 mm 10 mm 10 mm 17mm

download datasheet

 PDF PDF PDF PDF
Laengsschauglas

Options:

version with
blind tappings

to be welded into vessel walls

version with
cylindrical pad shape

to be welded onto vessel walls

version with
drainage chamfer

*can be combined with
cylindrical pad shape
Variante mit Sackloch Variante mit Radius Schraege

Important remark:



With the velding into the vessel, tha base frame becomes part of this. Therefor the pressure is not valid for the base frame. Before applying the sightglass, the opening in the vessel must be reviewed concidering "AD-Merkblatt B9"! If necessary the vessel must be reinforced!
